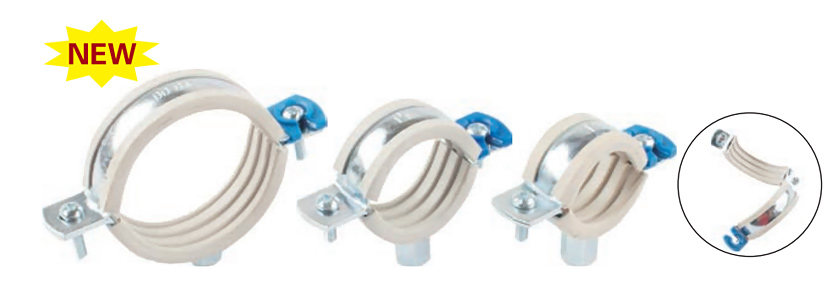

Pipe Clamp With Rubber & Plastic Clip
Specifications:
●material: steel and EPDM rubber
●surface: zinc plated, galvanized
Aplication:
●used for moiunting of pipes to the walls(vertical/horizontal) ,cellings and floors.
●for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines,such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.
Product description
| CODE | SIZE | RANGE(фD)(mm) | STEEL SIZE(S*B) | SCREW SIZE(M"L) | NUT SIZE(G) | PCS/CTN |
| 26A0018 | 3/8" | 15-19 | 1.5*20 | M5*25 | M8+10 | 200 |
| 26A0022 | 1/2" | 20-25 | 1.5*20 | M5*25 | M8+10 | 180 |
| 26A0028 | 3/4" | 26-30 | 1.5*20 | M5*25 | M8+10 | 150 |
| 26A0035 | 1" | 32-36 | 1.5*20 | M5*25 | M8+10 | 100 |
| 26A0040 | 1-1/4" | 38-43 | 1.5*20 | M5*25 | M8+10 | 190 |
| 26A0048 | 1-1/2" | 47-51 | 1.5*20 | M5*25 | M8+10 | 160 |
| 26A0060 | 2" | 60-64 | 1.5*20 | M5*30 | M8+10 | 120 |
| 26A0075 | 2-1/2" | 75-80 | 1.5*20 | M5*30 | M8+10 | 100 |
