Sprinkler Pipe Clamp & Without Rubber
Specifications:
●material: steel and EPDM rubber
●surface: zinc plated，galvanized
Application:
●used for moiunting of pipes to the walls(vertical/horizontal),cellings and floors.
●for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines, such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.

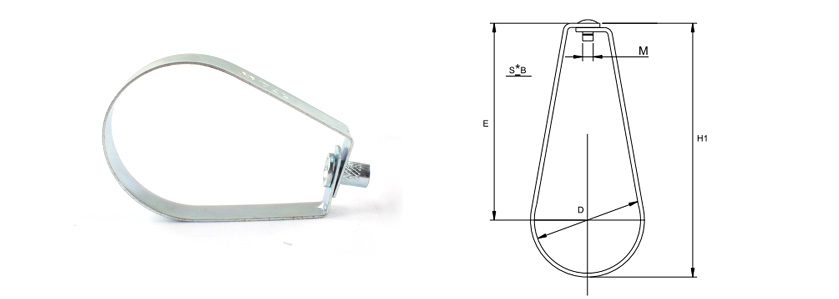

Product description
| CODE | SIZE | D(mm) | STEEL SIZE(S*B) | E(mm) | H1(mm) | L(mm) |
| 22B0028 | 3/4" | 30 | 1.2*20 | 54.5 | 71 | 10.5 |
| 22B0035 | 1" | 36 | 1.2*20 | 63.5 | 83 | 10.5 |
| 22B0040 | 1-1/4" | 46 | 1.2*20 | 70.5 | 95 | 10.5 |
| 22B0048 | 1-1/2" | 52 | 1.2*20 | 75.5 | 103 | 10.5 |
| 22B0060 | 2" | 66 | 1.5*20 | 83.5 | 118 | 10.5 |
| 22B0075 | 2-1/2" | 78 | 2.0*25 | 100.5 | 142 | 10.5 |
| 22B0090 | 3" | 92 | 2.0*25 | 117.5 | 166 | 10.5 |
| 22B0110 | 4" | 116 | 2.0*25 | 143.5 | 204 | 10.5 |
| 22B0140 | 5" | 142 | 2.0*30 | 175 | 249 | 13 |
| 22B0160 | 6" | 170 | 2.0*30 | 196 | 284 | 13 |
| 22B0220 | 8" | 222 | 2.5*30 | 262 | 376 | 17 |
| 22B0280 | 10" | 275 | 2.5*30 | 357.5 | 498 | 17 |
