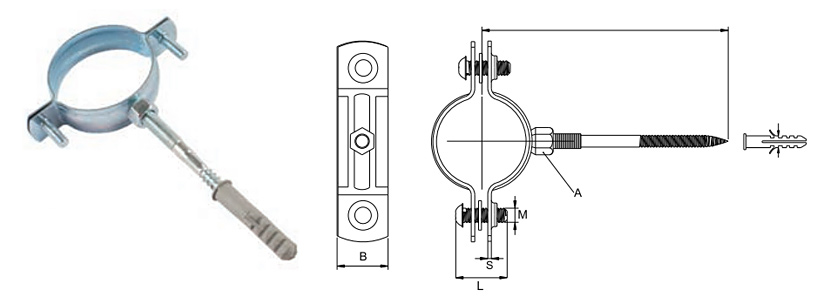

Pipe Clamp With Bolt & Plug & Without Rubber
Specifications:
●material: steel and EPDM rubber
●surface: zinc plated, galvanized
Application:
●used for moiunting of pipes to the walls(vertical/horizontal),cellings and floors.
●for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines,such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.
Product description
| CODE | SIZE | RANGE (фD) (mm) | STEEL SIZE(S*B) | SCREW SIZE(M"L) | NUT SIZE(G) | PLASTIC PLUG | HANGER BOLT | PCS/CTN |
| 13B0018 | 3/8" | 15-19 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 200 |
| 13B0022 | 1/2" | 20-25 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 180 |
| 13B0028 | 3/4" | 26-30 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 150 |
| 13B0035 | 1" | 32-36 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 100 |
| 13B0040 | 1-1/4 | 38-43 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 190 |
| 13B0048 | 1-1/2 | 47-51 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 160 |
| 13B0060 | 2" | 60-64 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 120 |
| 13B0075 | 2-1/2 | 75-80 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 100 |
| 13B0090 | 3" | 87-92 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 80 |
| 13B0100 | 3-1/2 | 99-105 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 | 80 |
| 13B0115 | 4" | 113-118 | 2.5*25 | M6*20 | M8+10 | S10*50 | M8*100 | 50 |
| 13B0140 | 5" | 138-142 | 2.5*25 | M6*20 | M8+10 | S10*50 | M8*100 | 30 |
| 13B0160 | 6" | 159-166 | 2.5*25 | M6*20 | M8+10 | S10*50 | M8*100 | 50 |
| 13B0220 | 8" | 215-220 | 2.5*25 | M6*20 | M8+10 | S10*50 | M8*100 | 25 |
