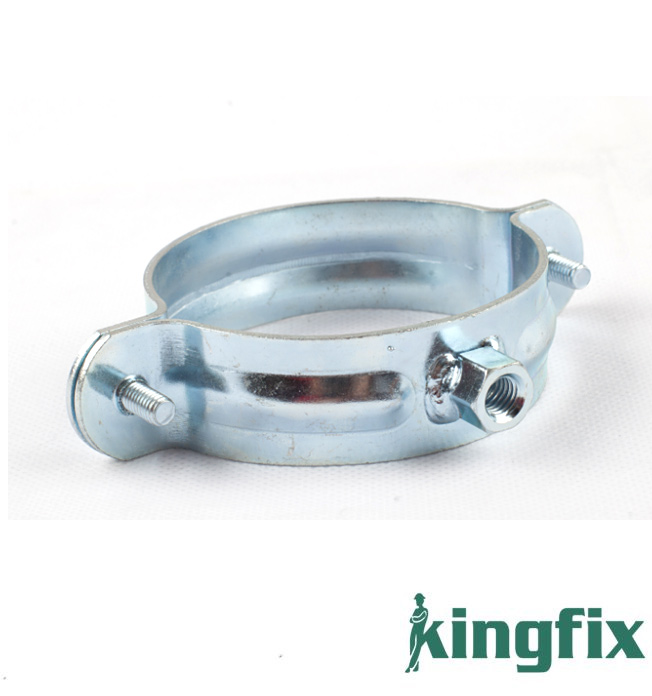

Heavy Duty Pipe Clamp Without Rubber
Specifications:
●material: steel and EPDM rubber
●surface: zinc plated, galvanized
★welding : argon arc welding
Application:
●used for moiunting of pipes to the walls(vertical/horizontal),cellings and floors.
●for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines, such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.
Product description

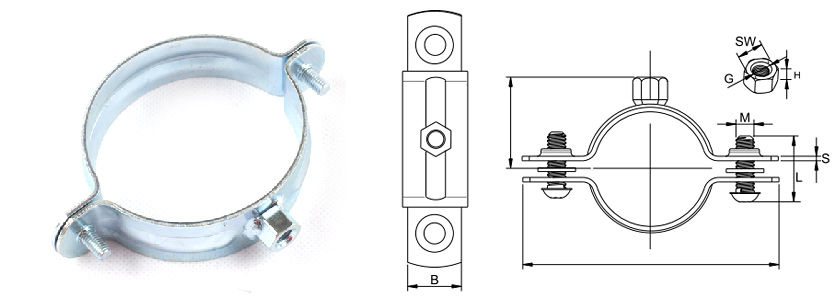

| CODE | SIZE | RANGE(фD)(mm) | STEEL SIZE(S*B) | SCREW SIZE(M"L) | PCS/CTN | CARTON SIZE |
| 24B0018 | 3/8" | 15-19 | 2.0*25 | M6*20 | 190 | 42*27*13 |
| 24B0022 | 1/2" | 20-25 | 2.0*25 | M6*20 | 190 | 42*27*13 |
| 24B0028 | 3/4" | 26-30 | 2.0*25 | M6*20 | 150 | 42*27*13 |
| 24B0035 | 1" | 32-36 | 2.0*25 | M6*20 | 110 | 42*27*13 |
| 24B0040 | 1-1/4" | 38-43 | 2.0*25 | M6*20 | 100 | 42*27*13 |
| 24B0048 | 1-1/2" | 47-51 | 2.0*25 | M6*20 | 170 | 42*27*25 |
| 24B0054 | - | 53-58 | 2.0*25 | M6*20 | 165 | 42*27*25 |
| 24B0060 | 2" | 60-64 | 2.5*25 | M8*25 | 150 | 42*27*25 |
| 24B0070. | - | 68-72 | 2.5*25 | M8*25 | 170 | 42*27*25 |
| 24B0075 | 2-1/2" | 75-80 | 2.5*25 | M8*25 | 100 | 42*27*25 |
| 24B0083 | - | 81-86 | 2.5*25 | M8*25 | 80 | 42*27*25 |
| 24B0090 | 3" | 87-92 | 2.5*25 | M8*25 | 80 | 42*27*25 |
| 24B0100 | 3-1/2 | 99-105 | 2.5*25 | M8*25 | 80 | 42*27*25 |
| 24B0110 | - | 107-112 | 2.5*25 | M8*25 | 70 | 42*27*25 |
| 24B0115 | 4" | 113-118 | 2.5*25 | M8*25 | 60 | 42*27*25 |
| 24B0125 | - | 125-130 | 2.5*25 | M8*30 | 55 | 42*27*25 |
| 24B0140 | 5" | 138-142 | 2.5*25 | M8*30 | 45 | 42*27*25 |
| 24B0160 | 6" | 159-166 | 2.5*25 | M8*30 | 20 | 42*27*25 |
| 24B0220 | 8" | 215-220 | 2.5*25 | M8*30 | 10 | 42*27*25 |
