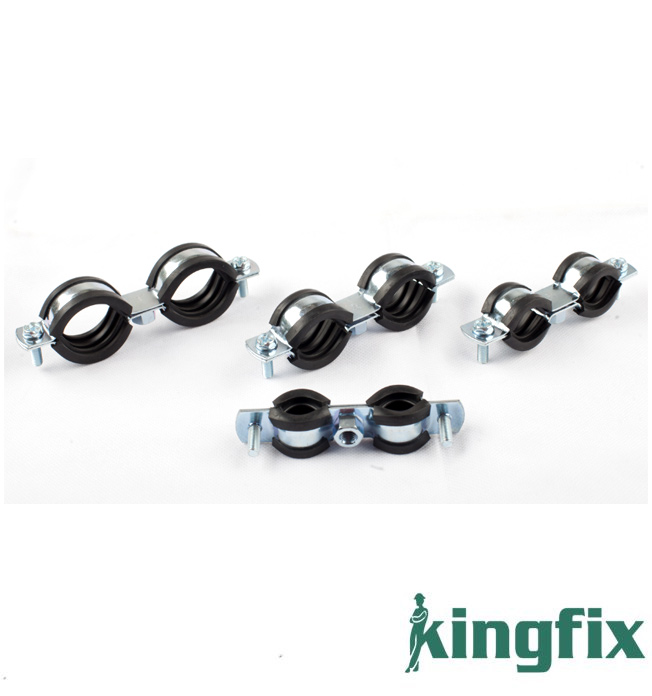

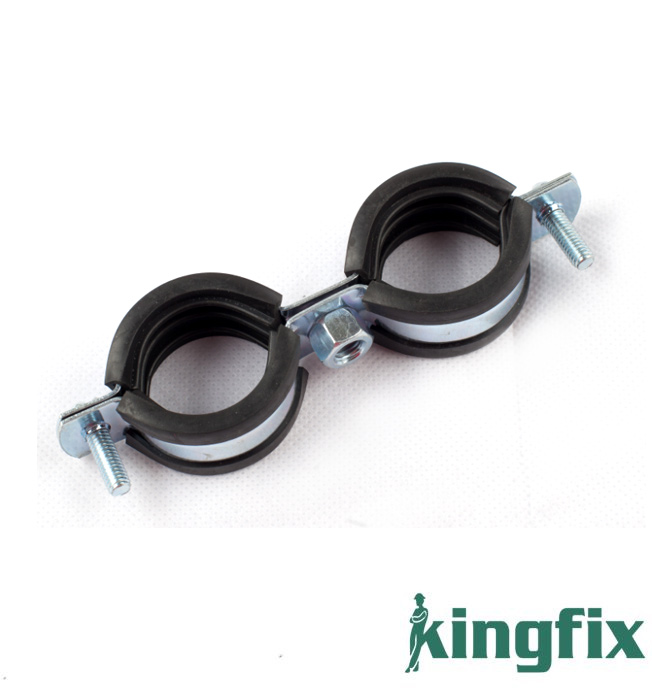

Twin Pipe Clamp With Rubber
Specifications :
●material: steel and EPDM rubber
●surface : zinc plated, galvanized
Application :
●used for moiunting of pipes to the walls(vertical/horizontal),cellings and floors.
●for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines,such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.
Product description

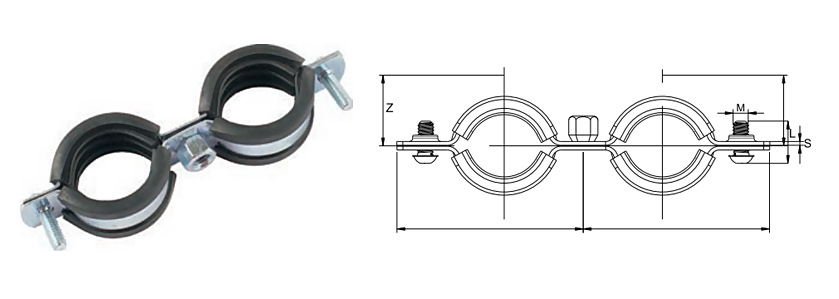

CODE | SIZE | RANGE(фD)(mm) | STEEL SIZE(S*B) | SCREW SIZE(M"L) | NUT SIZE(G) | PCS/CTN | CARTON SIZE |
20A0018 | 3/8'' | 15-19 | 1.5*20 | M6*20 | M8 | 200 | 42*27*13 |
20A0022 | 1/2'' | 20-25 | 1.5*20 | M6*20 | M8 | 200 | 42*27*13 |
20A0028 | 3/4'' | 26-30 | 1.5*20 | M6*20 | M8 | 160 | 42*27*13 |
20A0035 | 1'' | 32-36 | 1.5*20 | M6*20 | M8 | 120 | 42*27*13 |
