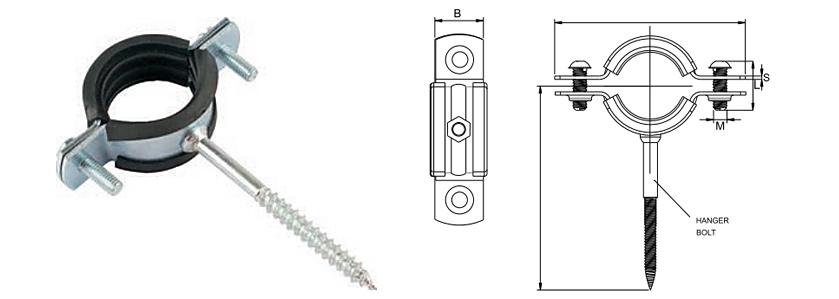

Screw Nail Clamp With Rubber
Specifications :
●material: steel and EPDM rubber
●surface : zinc plated, galvanized
Application:
●used for moiunting of pipes to the walls(vertical/horizontal),cellings and floors.
●for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines,such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.
Product description
CODE | SIZE | RANGE(фD)(mm) | STEEL SIZE(S*B) | SCREW SIZE(M"L) | NUT SIZE(G) | PCS/CTN |
16A0018 | 3/8" | 15-19 | 1.5*20 | M6*20 | M8*80 | 200 |
16A0022 | 1/2" | 20-25 | 1.5*20 | M6*20 | M8*80 | 200 |
16A0028 | 3/4" | 26-30 | 1.5*20 | M6*20 | M8*80 | 150 |
16A0035 | 1" | 32-36 | 1.5*20 | M6*20 | M8*80 | 110 |
16A0040 | 1-1/4 | 38-43 | 1.5*20 | M6*20 | M8*80 | 100 |
16A0048 | 1-1/2 | 47-51 | 1.5*20 | M6*20 | M8*80 | 170 |
16A0060 | 2" | 60-64 | 1.5*20 | M6*20 | M8*80 | 140 |
16A0075 | 2-1/2 | 75-80 | 1.5*20 | M6*20 | M8*80 | 120 |
16A0083 | 81-86 | 1.5*20 | M6*20 | M8*80 | 100 | |
16A0090 | 3" | 87-92 | 1.5*20 | M6*20 | M8*80 | 90 |
16A0100 | 3-1/2 | 99-105 | 1.5*20 | M6*20 | M8*80 | 80 |
16A0110 | 107-112 | 1.5*20 | M6*20 | M8*100 | 60 | |
16A115 | 4" | 113-118 | 2.0*20 | M6*20 | M8*100 | 55 |
16A0140 | 5" | 138-142 | 2.0*20 | M6*20 | M8*100 | 40 |
16A0160 | 6" | 159-166 | 2.0*20 | M6*20 | M8*100 | 25 |
16A0200 | 200 | 198-207 | 2.0*20 | M6*20 | M8*100 | 20 |
16A0220 | 8" | 215-220 | 2.0*20 | M6*20 | M8*100 | 15 |
