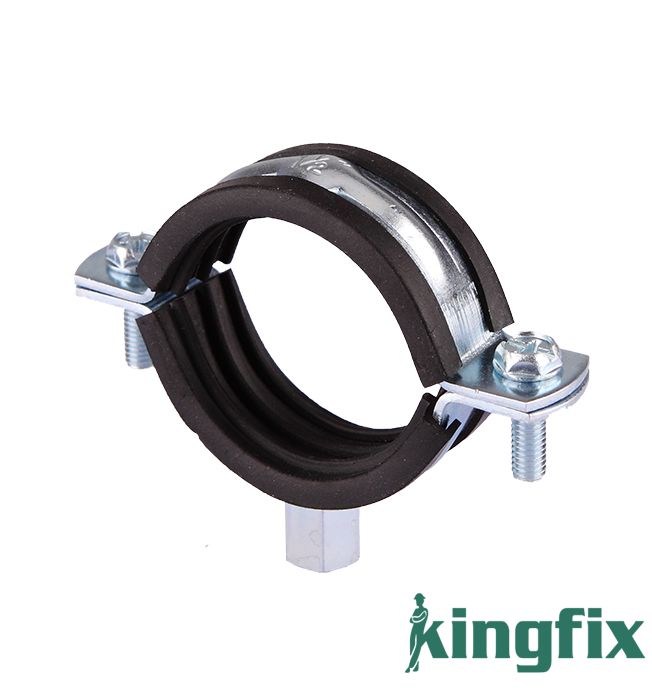

Kombi Pipe Clamp With Rubber
Specifications:
●material: steel and EPDM rubber
●surface : zinc plated, galvanized
Application:
●used for moiunting of pipes to the walls(vertical/horizontal),cellings and floors.
o for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines,such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.
Product description

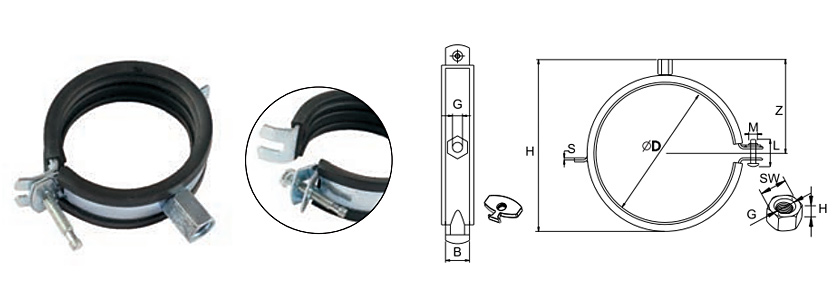

| CODE | SIZE | RANGE(фD)(mm) | STEEL SIZE(S*B) | SCREW SIZE(M"L) | NUT SIZE(G) | PCS/CTN | CARTON SIZE |
| 19A0018 | 3/8" | 15-19 | 1.5*20 | M5*25 | M8+10 | 200 | 42*27*13 |
| 19A0022 | 1/2" | 20-25 | 1.5*20 | M5*25 | M8+10 | 180 | 42*27*13 |
| 19A0028 | 3/4" | 26-30 | 1.5*20 | M5*25 | M8+10 | 150 | 42*27*13 |
| 19A0035 | 1" | 32-36 | 1.5*20 | M5*25 | M8+10 | 100 | 42*27*13 |
| 19A0040 | 1-1/4" | 38-43 | 1.5*20 | M5*25 | M8+10 | 190 | 42*27*25 |
| 19A0048 | 1-1/2" | 47-51 | 1.5*20 | M5*25 | M8+10 | 160 | 42*27*25 |
| 19A0060 | 2" | 60-64 | 1.5*20 | M5*30 | M8+10 | 120 | 42*27*25 |
| 19A0075 | 2-1/2" | 75-80 | 1.5*20 | M5*30 | M8+10 | 100 | 42*27*25 |
