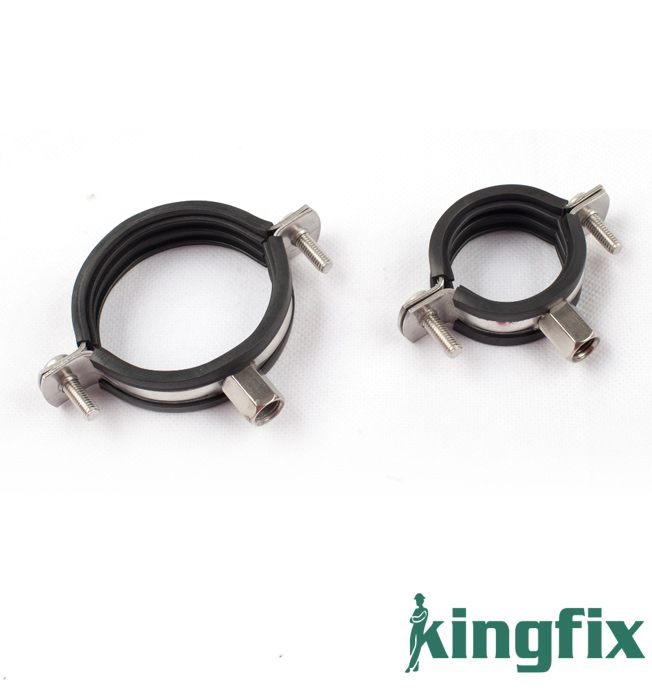

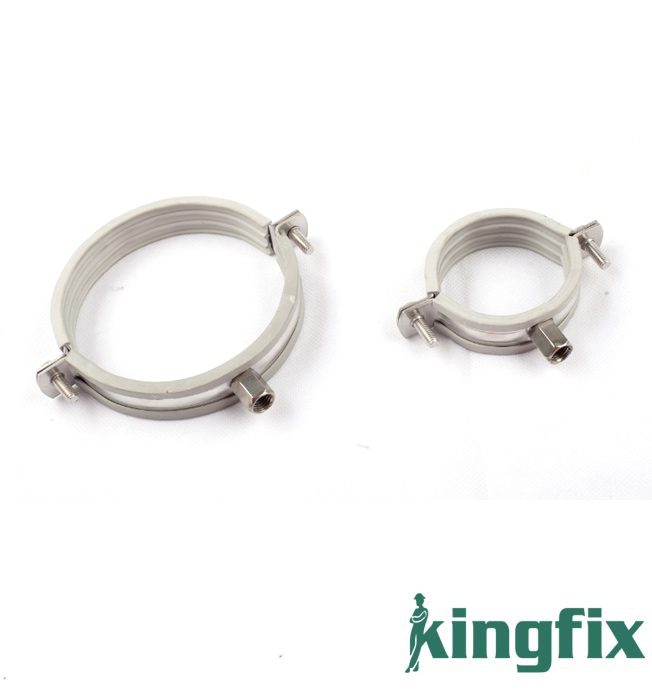

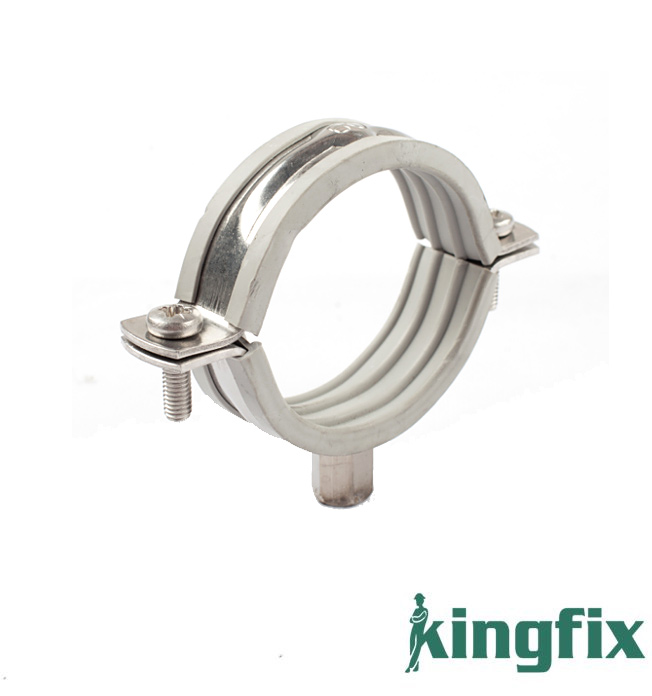

Stainless Steel Pipe Clamp With Rubber
Specifications:
★material: stainless steel(ss316)
●surface: polishing
Application:
●used for moiunting of pipes to the walls(vertical/horizontal) ,cellings and floors.
●for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines,such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.
Product description

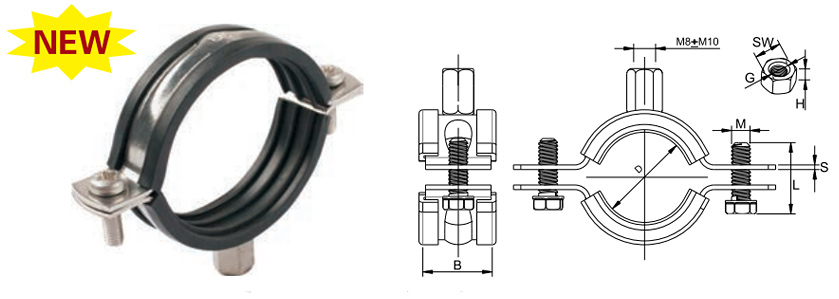

| CODE | SIZE | RANGE(фD)(mm) | STEEL SIZE(S*B) | SCREW SIZE(M"L) | NUT SIZE(G) | PCS/CTN |
| 25A0018 | 3/8" | 15-19 | 1.8*20 | M6*20 | M8+10 | 200 |
| 25A0022 | 1/2" | 20-25 | 1.8*20 | M6*20 | M8+10 | 200 |
| 25A0028 | 3/4" | 26-30 | 1.8*20 | M6*20 | M8+10 | 160 |
| 25A0035 | 1" | 32-36 | 1.8*20 | M6*20 | M8+10 | 120 |
| 25A0040 | 1-1/4" | 38-43 | 1.8*20 | M6*20 | M8+10 | 120 |
| 25A0048 | 1-1/2" | 47-51 | 1.8*20 | M6*20 | M8+10 | 180 |
| 25A0054 | - | 53-58 | 1.8*20 | M6*20 | M8+10 | 175 |
| 25A0060 | 2" | 60-64 | 1.8*20 | M6*20 | M8+10 | 170 |
| 25A0070 | - | 68-72 | 1.8*20 | M6*20 | M8+10 | 120 |
| 25A0075 | 2-1/2" | 75-80 | 1.8*20 | M6*20 | M8+10 | 120 |
| 25A0083 | - | 81-86 | 1.8*20 | M6*20 | M8+10 | 100 |
| 25A0090 | 3" | 87-92 | 1.8*20 | M6*20 | M8+10 | 100 |
| 25A0100 | 3-1/2 | 99-105 | 1.8*20 | M6*20 | M8+10 | 100 |
| 25A0110 | 110 | 107-112 | 1.8*20 | M6*20 | M8+10 | 60 |
| 25A0115 | 4" | 113-118 | 1.8*20 | M6*20 | M8+10 | 60 |
| 25A0125 | - | 125-130 | 1.8*20 | M6*20 | M8+10 | 50 |
| 25A0140 | 5" | 138-142 | 1.8*20 | M6*20 | M8+10 | 40 |
| 25A0160 | 6" | 159-166 | 1.8*20 | M6*20 | M8+10 | 30 |
| 25A0200 | 198-207 | 1.8*20 | M6*20 | M8+10 | 15 | |
| 25A0220 | 8" | 215-220 | 1.8*20 | M6*20 | M8+10 | 15 |
