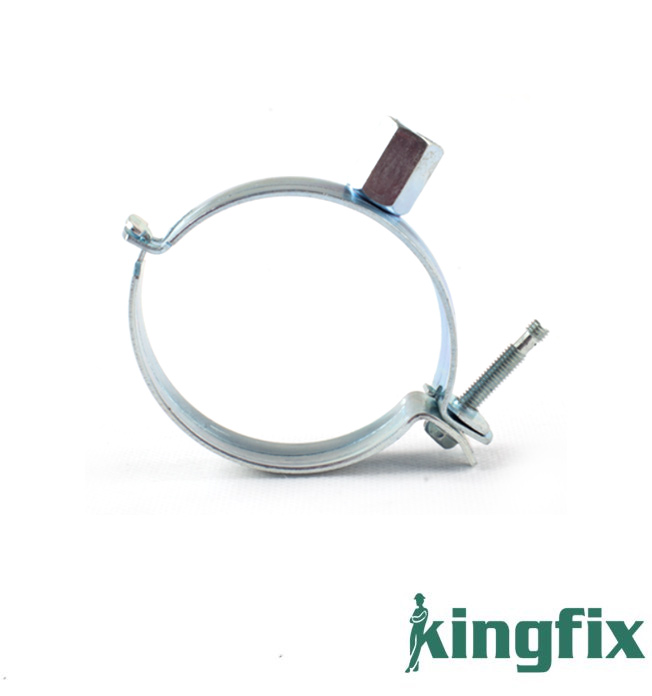

Pipe Clamp With M8+10 Nut & Without Rubber
Specifications:
●material: steel and EPDM rubber
●surface : zinc plated, galvanized
Application:
●used for moiunting of pipes to the walls(vertical/horizontal),cellings and floors.
●for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines,such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.
Product description

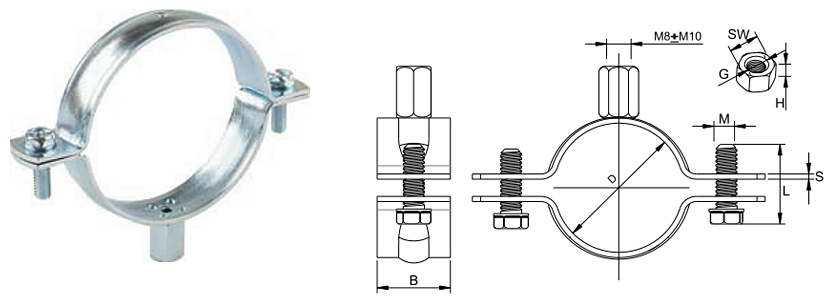

| CODE | SIZE | RANGE(фD)(mm) | STEEL SIZE(S*B) | SCREW SIZE(M"L) | NUT SIZE(G) | PCS/CTN |
| 11B0018 | 3/8" | 15-19 | 1.5*20 | M6*20 | M8+10 | 200 |
| 11B0022 | 1/2" | 20-25 | 1.5*20 | M6*20 | M8+10 | 200 |
| 11B0028 | 3/4" | 26-30 | 1.5*20 | M6*20 | M8+10 | 160 |
| 11B0035 | 1" | 32-36 | 1.5*20 | M6*20 | M8+10 | 120 |
| 11B0040 | 1-1/4" | 38-43 | 1.5*20 | M6*20 | M8+10 | 120 |
| 11B0048 | 1-1/2" | 47-51 | 1.5*20 | M6*20 | M8+10 | 180 |
| 11B0054 | - | 53-58 | 1.5*20 | M6*20 | M8+10 | 175 |
| 11B0060 | 2" | 60-64 | 1.5*20 | M6*20 | M8+10 | 170 |
| 11B0070 | - | 68-72 | 1.5*20 | M6*20 | M8+10 | 120 |
| 11B0075 | 2-1/2" | 75-80 | 1.8*20 | M6*20 | M8+10 | 120 |
| 11B0083 | - | 81-86 | 1.8*20 | M6*20 | M8+10 | 100 |
| 11B0090 | 3" | 87-92 | 1.8*20 | M6*20 | M8+10 | 100 |
| 11B0100 | 3-1/2 | 99-105 | 1.8*20 | M6*20 | M8+10 | 100 |
| 11B0110 | 110 | 107-112 | 2.0*20 | M6*20 | M8+10 | 60 |
| 11B0115 | 4" | 113-118 | 2.0*20 | M6*20 | M8+10 | 60 |
| 11B0125 | - | 125-130 | 2.0*20 | M6*20 | M8+10 | 50 |
| 11B0140 | 5" | 138-142 | 2.0*20 | M6*20 | M8+10 | 40 |
| 11B0160 | 6" | 159-166 | 2.0*20 | M6*20 | M8+10 | 30 |
| 11B0200 | 198-207 | 2.0*20 | M6*20 | M8+10 | 15 | |
| 11B0220 | 8" | 215-220 | 2.0*20 | M6*20 | M8+10 | 15 |
