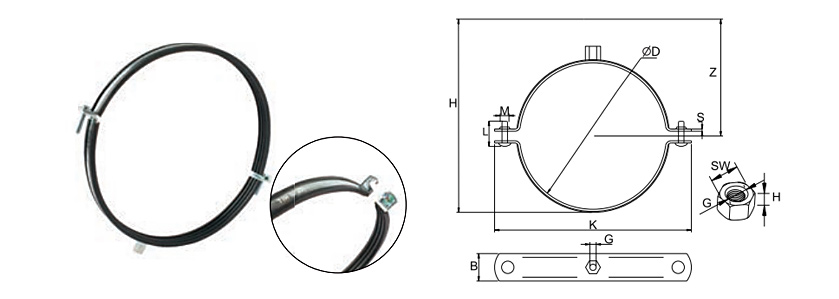

Ventilation Clamp With Rubber
Specifications:
●material: steel and EPDM rubber
●surface: zinc plated，galvanized
Application:
●used for moiunting of pipes to the walls(vertical/horizontal),cellings and floors.
●for suspending stationary non-insulated copper tubing lines.
●being fasteners for pipe lines,such as, heating, sanitary and waste water pipes, to walls,cellings and floors.
●side screws are protected against loss during assemble with the help of plastic washers.
Product description
| CODE | SIZE(mm) | STEEL SIZE(S*B) | SCREW SIZE(M"L) | NUT SIZE(G) | PCS/CTN | CARTON SIZE |
| 21A0080 | 80 | 2.0*20 | M6*20 | M8+10 | 80 | 42*27*25 |
| 21A0100 | 100 | 2.0*20 | M6*20 | M8+10 | 100 | 42*27*25 |
| 21A0125 | 125 | 2.0*20 | M6*20 | M8+10 | 80 | 42*27*25 |
| 21A0150 | 150 | 2.0*20 | M6*20 | M8+10 | 60 | 42*27*25 |
| 21A0160 | 160 | 2.0*20 | M6*20 | M8+10 | 60 | 42*27*25 |
| 21A0180 | 180 | 2.0*20 | M6*20 | M8+10 | 60 | 42*27*25 |
| 21A0200 | 200 | 2.0*20 | M6*20 | M8+10 | 40 | 42*27*25 |
| 21A0225 | 225 | 2.0*20 | M6*30 | M8+10 | 40 | 42*27*25 |
| 21A0250 | 250 | 2.0*20 | M6*30 | M8+10 | 35 | 42*27*25 |
| 21A0280 | 280 | 2.0*20 | M6*30 | M8+10 | 30 | 42*27*25 |
| 21A0300 | 300 | 2.0*20 | M6*30 | M8+10 | 50 | 49*39.5*25 |
| 21A0315 | 315 | 2.0*20 | M6*30 | M8+10 | 40 | 49*39.5*25 |
| 21A0355 | 355 | 2.0*20 | M6*30 | M8+10 | 30 | 49*39.5*25 |
| 21A0400 | 400 | 2.0*20 | M6*30 | M8+10 | 30 | 49*39.5*25 |
